Product Details:
Payment & Shipping Terms:
|
| Type: | Vacuum Transfer Printing | Condition: | New |
|---|---|---|---|
| Warranty: | One Year | After-sales Service Provided:: | Engineers Available To Service Machinery Overseas |
| Substrate: | Steel | Coating: | Powder Coating |
| Voltage: | Customized | Name: | Wood Effect Decoration Machine For Aluminium |
| Heat Source: | Heat Source: Oil, Natural Gas, Electricity，LPG | Core Components: | Hot Air Circulation System |
| High Light: | Wood Effect Vacuum Transfer Printing Machine,High Efficiency Vacuum Transfer Printing Machine,High Efficiency transfer printing equipment |
||

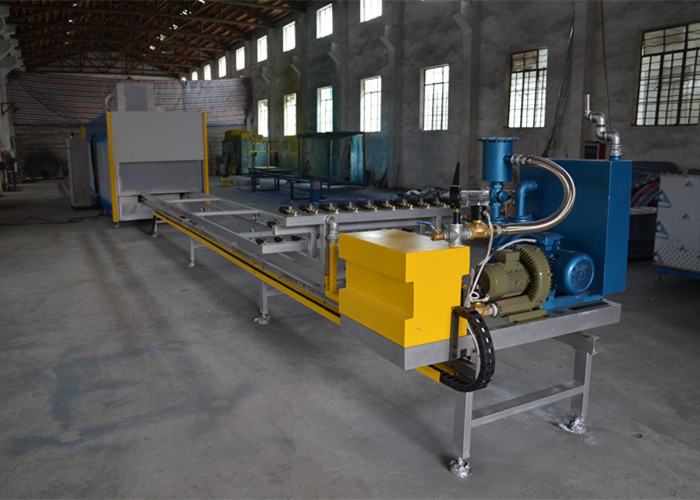

wood effect decoration machine can make various aluminum profiles and steel sheets into wood effect.The pigment inks transfer from a paper or
film and are absorbed into the powder coating. Photographic reproduction of any pattern is possible, such as aluminum window in wood effect.
2.1 The wood texture transfer machine is to transfer the texture of inked paper onto profiles, which will be widely used in window and door
decoration.
2.2 This technology works after electrostatic powder coating.

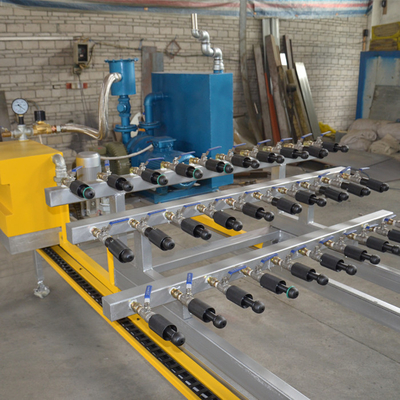

2.3 The paper will be coated on aluminum profiles by vacuumizing.
2.4 After transfer printing by heating and curing, the texture will be shown on the profiles, making them look like real wood material.
3. Equipment Parameters
| No | Name | Parameters | Remarks |
| 1 | Aluminum profile length | 6000mm | |
| 2 | Section maximum size | (W)80mm×(H)160mm | |
| 3 | Production capacity | About 4-5furnace perhour | |
| 4 | Heat transfer material | wood grain paper or film | |
| 5 | Processing temperature | 150℃~180℃ | |
| 6 | Curing time | 15~18 minute | |
| 7 | Power supply | Natural gas, oil or electricity | |
| 8 | Workpiece operation mode | Automatic or manual | |
| 9 | Overall size | 28500×7000×3600 mm | |
| 10 | Furnace size | 8500×2150×2950 mm | |
| 11 | Transferring temperature | 150℃~180℃ | |
| 12 | Heat up time | About 30 minute |
5.Heat transfer effect
6.Packing & Delivery
