0-100KV Manual Powder Coating Equipment For Steel And Wood Furniture

Large Image : 0-100KV Manual Powder Coating Equipment For Steel And Wood Furniture

Product Details:

Place of Origin:	CHINA
Brand Name:	HM

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	USD 800-1200
Packaging Details:	Wooden box or carton packaging+Air cushion film
Delivery Time:	7days
Payment Terms:	D/A, D/P, T/T, Western Union
Supply Ability:	100 sets one year

Contact Now

Detailed Product Description

Type:	Coating Spray Gun	Condition:	New
Core Components:	Engine, Motor, Pump	Core Components:	Engine, Motor, Pump
Product Name:	Electrostatic Powder Coating Machine And Spraying G	Substrate:	Metal, Aluminum, Steel
Warranty:	One Year	Weight (KG):	45
Gun Weight:	500g	Maximum Output Voltage::	0-100KV ( Adjustable)
Voltage:	Customized
High Light:	100KV Manual Powder Coating Equipment , 100KV manual powder coating machine , Wood Furniture Manual Powder Coating Equipment

Manual Powder Coating Equipment for Steel and Wood Furniture

1. Product Description

1.1. Complete manual spray gun including:

Manual gun, electrostatic generator, powder pump, trolley, oil-water separator, air pressure regulating valve,cable,hose,powder bucket and trolley.

1.2. Technical parameter

A). Electrostatic generator:

Input power voltage: 220-240v 50-60Hz

Input power: 40w

Pulse peak voltage:0-120KV(negative polarity,continuous,stepless regulation)

It can be running in continuously.

B). Powder supply &air source

Electromagnetic valve control power voltage: 24v DC

Input air pressure: 0-0.6Mpa

Output air pressure: 0-0.5Mpa

Max. Air consumption: 13.2m/h(0.4Mpa)

C). Powder gun

electrostatic powder gun

Input air pressure: ≤0.3Mpa

Output powder volume: Max. 550g/min

Output power voltage: 0-100kv

Output current: 0-150uA

Gun weight: 500g

D) powder bucket

Material: stainless steel

Size:350*550mm

Net Weight:5KG

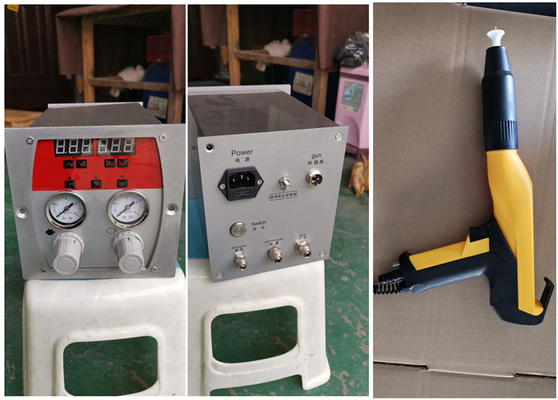

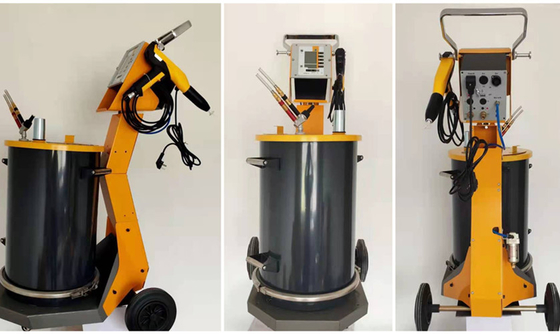

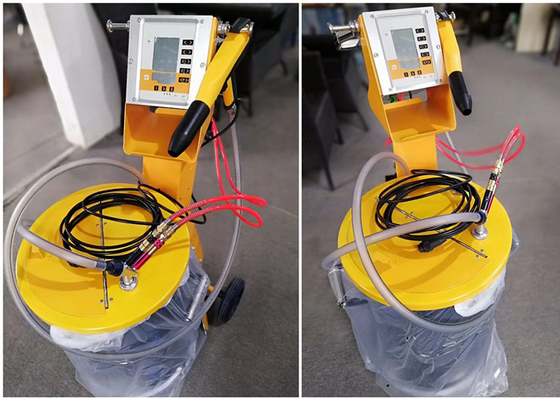

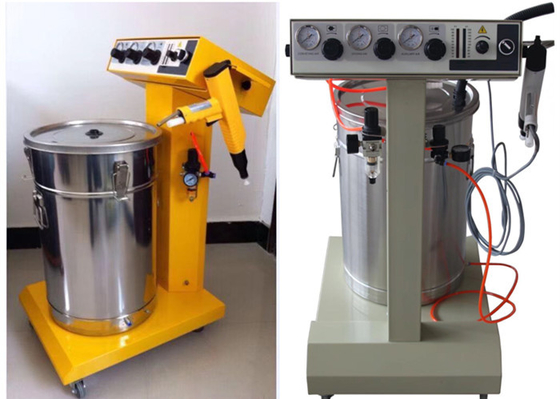

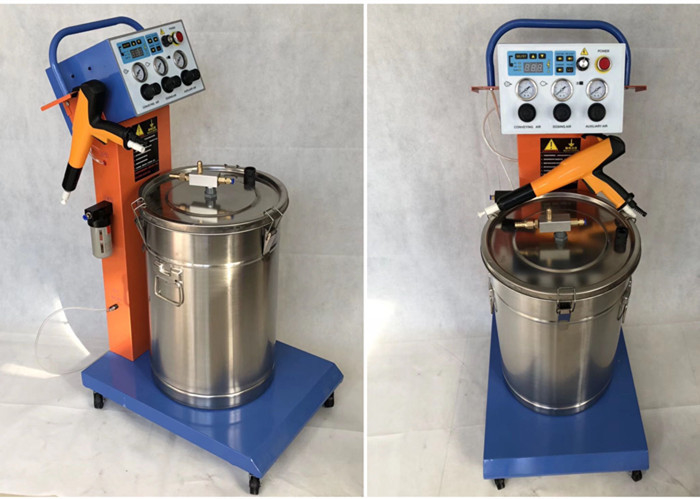

2. Product Pictures

0-100KV Manual Powder Coating Equipment For Steel And Wood Furniture 0

3.Our Service

The guarantee period of machinery is 12 months after shipping. The buyer should follow the operation instruction and maintenance instruction provided by the seller. Within the guarantee time, the buyer should be responsible for quality problem of the equipment except for man-made damage or problem caused by wrong operation. After guarantee period, the seller will provide necessary support on the customer’s demand and charge reasonablely based on material cost.
