Steel Substrate Lpg Powder Coating Oven / Powder Coating Batch Oven

Curing furnace for electrostatic powder coating line

1. Product Description

The powder curing oven is a part of powder coating line.

Objective: The workpiece surface of powder coating heating to the specified temperature and heat preservation

corresponding time, melting, flow flat, curing.
Process steps: Spraying good workpiece push curing oven, heating to the predetermined temperature (usually 185 degrees) and heat preservation corresponding time (20 minutes). The High temperature heat resistance Circulating fan can Can guarantee the oven internal places (including corner) have the same temperature. Blow on take out cooling namely get finished.

2.Working principle of Gas curing oven


2.1. Heating curing oven, Start the fan button, the fan start to work, then the burner start to work followed so that the curing oven being heated.

2.2. Set the temperature 180 degrees(0-300 degrees), While the temperature up to be the set temperature, the burner stop working. After the

heat preservation time being 10 minutes(0-60minutes), the bell alarm. The next, close all control units so that the heating system and fan stop

working.

2.3. Open the curing oven door, taking out workpieces.

According to the customer's requirement, We can made all kinds size of curing oven.

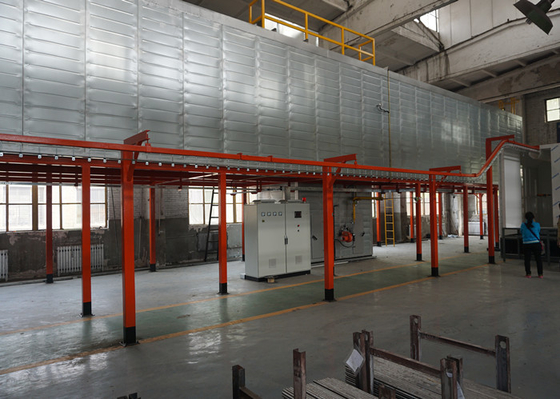

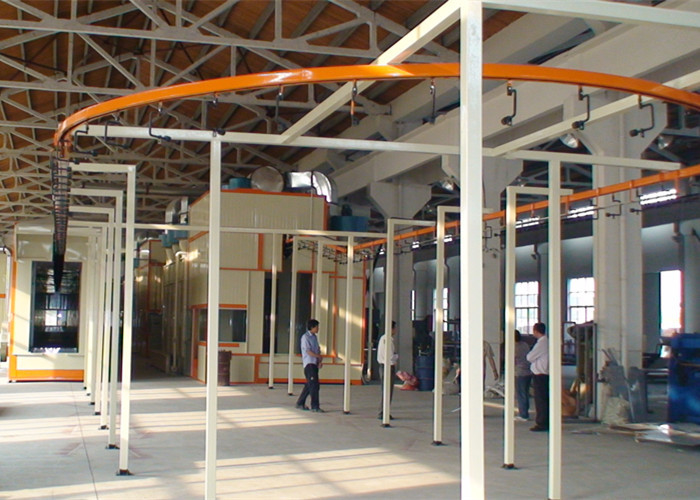

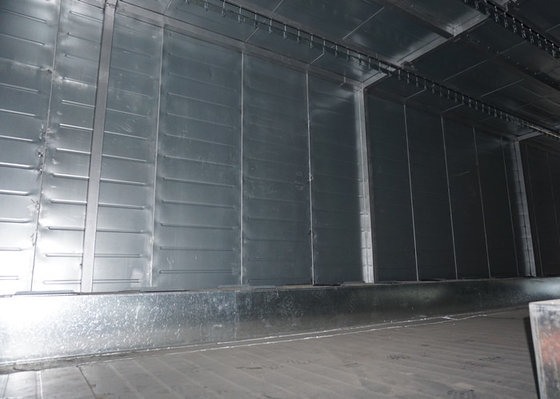

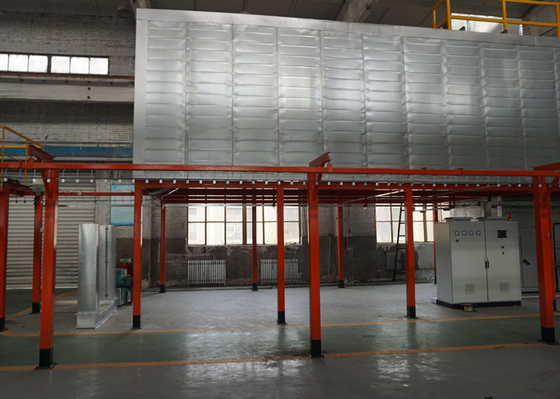

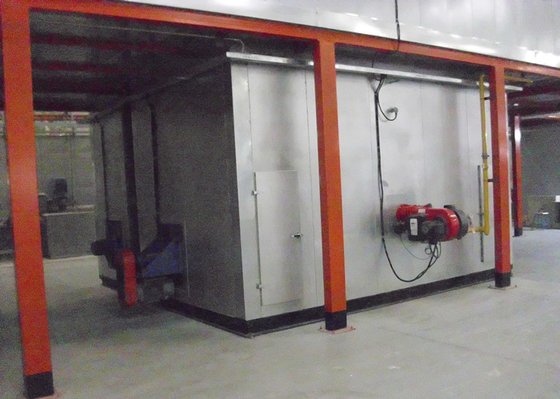

3.Product Pictures

4. FAQ

To provide you more details and quotation, would you pls let me know the following information:

4.1. What is the max and min size for painted product? Would you pls send us some pictures for your product?

4.2. How many pieces will you paint in one hour or one day?

4.3. What is your available space for this powder coating line project(length,width and net height)?

4.4. What is the heating source?(natural gas,LPG,diesel oil,electricity)

4.5. What kind of pretreatment system do you need?(sand or shot blasting, dipping tank type or spray pretreatment by chemical liquid?)

We like to provide you our full suport for your powder coating line project.
