Product Details:
Payment & Shipping Terms:
|
| Type: | Coating Production Line | Condition: | New |
|---|---|---|---|
| Place Of Origin: | Hebei, China | Dimension: | 255*85*85cm |
| Key Selling Points: | Easy To Operate | Guns Can Hold: | 2-12 |
| Substrate: | Steel | Machine Type: | Powder Coating Robot |
| Coating: | Powder Coating | Warranty: | One Year |
| High Light: | Vertical Automatic Powder Coating Robot,automatic reciprocator 85cm,automatic reciprocator 85cm |
||

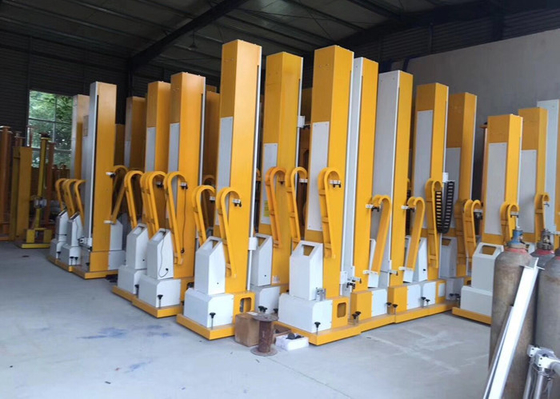

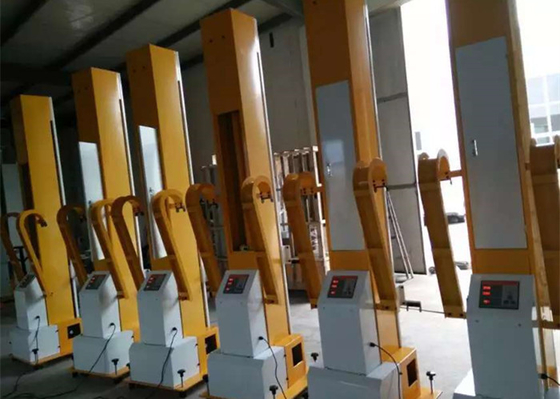

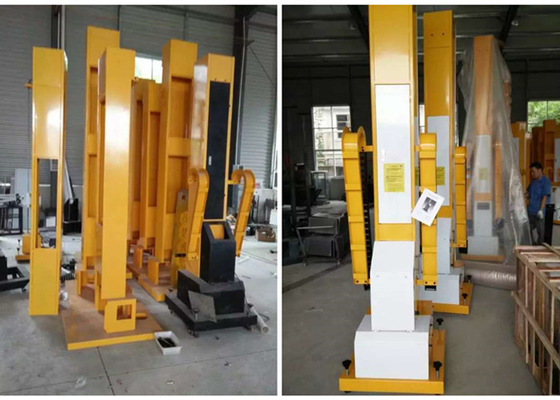

Automatic Reciprocator Powder Coating Spray Gun Machine
Our reciprocator is electrically driven by a frenquency control motor via PLC,giving gentle and precise motion,thus ensuring pefect coating result.It is wheel for easy moving and fix.The slim colum design allows for space saving arrangement of the guns.
Economy
Up to 99 percent of powder overspray can be captured and recycled
One-coat coverage without runs or sags
Easy cleanup
No solvents to mix or recover
No viscosity balance to maintain
No flash-off time requirements
No need to provide heat booth make-up when air is returned to work area
Reject rate can be kept low because damaged coating can be blown off and recoated before heat cure
Excellence of Finish
Readily available resins can provide one or a combination of desirable characteristics including: durability, resilience, high gloss, electrical insulation, toughness; and resistance to wear, corrosion, impact, chemical action, and weather
Powder manufacturers now offer a complete range of colors plus excellent color matching
Ease of Application
Consistent finish characteristics and electrostatic "wrap-around" reduce the need for highly skilled operators
Process is easily automated and can include automatic gun movers and/or contouring mechanisms
Production time can often be reduced, as one coat will do the job.
|
Power supply |
AC 220V/110V 50Hz-60Hz |
|
Power motor |
0.75KW |
|
Sweep speed |
0-50m/min |
|
Acceleration |
1m/Second |
|
Environmental |
0-50 degree |
|
Star signal model |
digital display |
|
Max load capacity |
25kgs |
|
Motion range |
0.3-2.5m can be setting |
|
Point delay time |
0-5 sec (optional) |
|
Maintenance |
free motor |
|
Stroke |
1.5m/1.8m/2m/2.5m or customized |
|

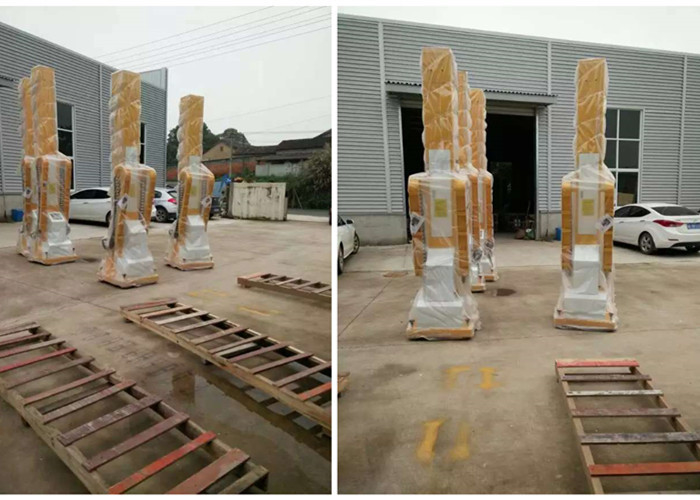

Packaging Detail: |
wooden box |
|
Delivery Detail: |
3~7 days |
Guarantee and after-sale service
The guarantee period of machinery is 12 months after shipping. The buyer should follow the operation instruction and maintenance instruction provided by the seller. Within the guarantee time, the buyer should be responsible for quality problem of the equipment except for man-made damage or problem caused by wrong operation. After guarantee period, the seller will provide necessary support on the customer’s demand and charge reasonablely based on material cost.
The equipments can be applied in LPG cylinder/Fan/Door/Aluminum Profiles/CarWheels/Shelf/Electricity Cabniet/Fire Extinguisher industries.
