Product Details:
Payment & Shipping Terms:
|
| Weight: | 35kg | Warranty: | One Year |
|---|---|---|---|
| Substrate: | Steel | Contain: | Controller+ Spray Gun |
| Application: | Powder Coating | Voltage: | 220v/110v AC |
| Power: | 45W | Production Cycle: | 7days |
| High Light: | Metal Workpiece Powder Coating Paint Machine,Metal Workpiece Small Powder Coating Machine,Powder Coating Paint Machine 45W |
||
Product Description
Electrostatic spray machine works:
The powder is evenly sprayed around the workpiece by the electrostatic spraying machine, and the powder is uniformly adsorbed on the surface of the workpiece by static electricity. The powder is baked and leveled at high temperature to solidify into powder coatings with different effects. This product is widely used in home appliances, hardware, anti-theft doors (windows), fins, construction, auto parts, sports equipment, medical equipment, aluminum and other industries.
Operating Instruction:
Connect all the connecting lines and air tubes.
Turn on switch of power supply (lighting indicator is on).
Press the switch of spray gun to adjust voltage required .
Powder is placed into powder feeding barrel.
Press the switch of spray gun and adjust to high-voltage. Start work if the powder is sprayed.
Technical Papameter
| No. | Item | Specification |
| 1 | Power supply | AC90-260V, 50-60Hz |
| 2 | Total power | 40w |
| 3 | Output voltage | 0~100kv |
| 4 | Output current | ≤150µA |
| 5 | Polarity | Negative |
| 6 | High-voltage module | Inside |
| 7 | Compressed air | 0.4-0.8MPa |
| 8 | Weight of spray gun | 500g |
| 9 | Powder output volume | 50~600g/min, adjustable |

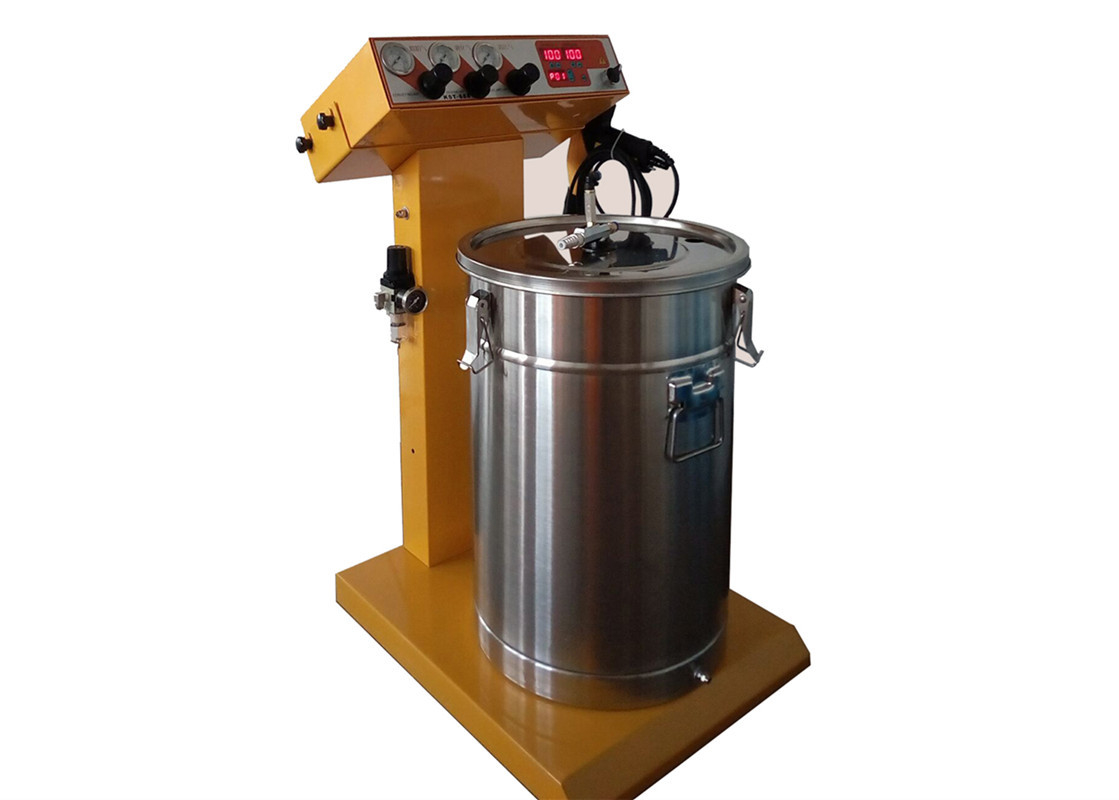

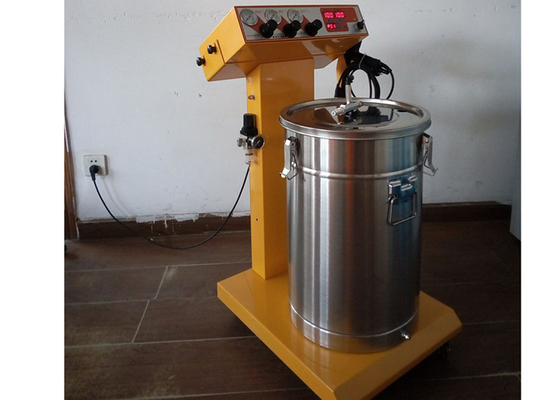

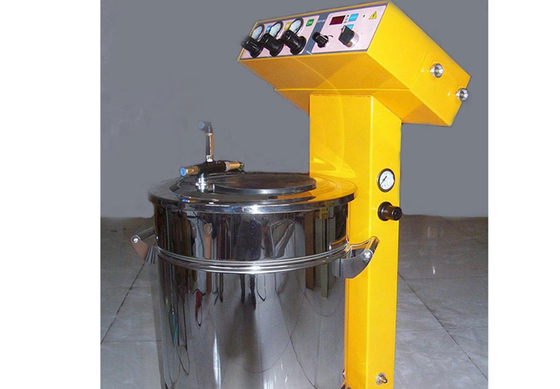

Product Photo
