Product Details:
Payment & Shipping Terms:
|
Type: | Coating Spray Gun | Condition: | New |
---|---|---|---|
Video Outgoing-inspection:: | Provided | Voltage: | Customized |
Application: | Powder Decorative Coating | Spraying Guns: | Electrostatic Paint Spraying Gun |
Substrate: | Steel | Machine Type: | Powder Coating Gun |
Warranty: | One Year | Weight: | 40kg |
High Light: | Steel Substrate Powder Coating Spray Machine,Powder Coating Spray Machine 600g/Min,Steel Substrate powder coating gun machine |

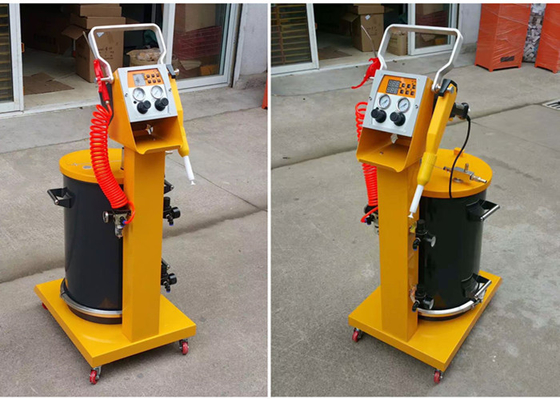

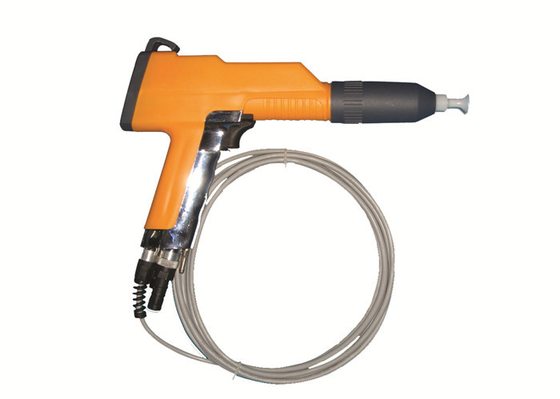

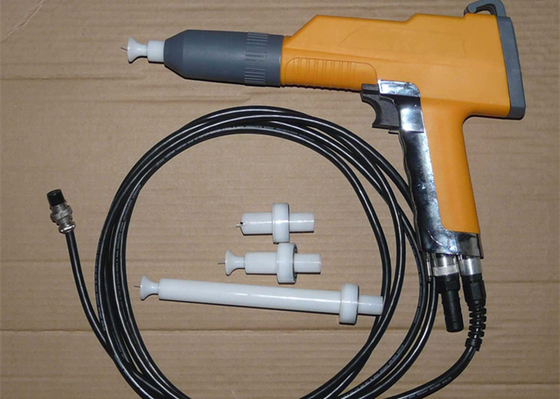

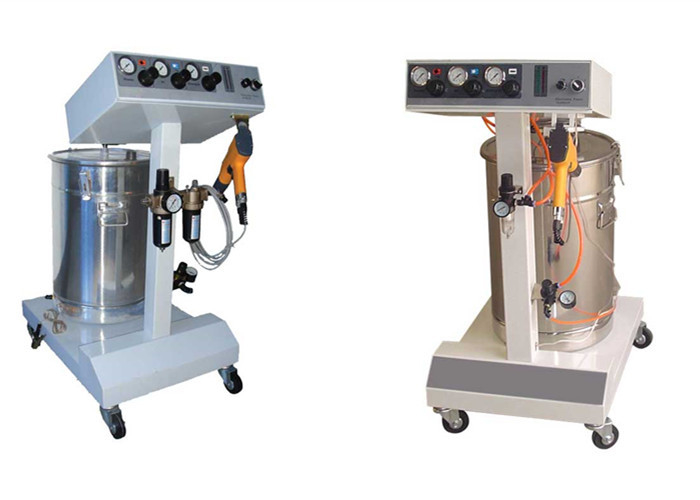

Our powder coating gun machine deliver superior coating coverage and efficiency across all type of applications. The powder gun incorporates an air purge cleanable design for fast and easy cleaning both inside and outside. These guns are made by specially engineered material that minimizes wear and impact fusion. These guns are ideal for quick and color changed powder applications. 100 kV Electrostatic Powder Coating Machine combine production - proven powder spray, gun and control technology and performance suitable for all type of jobs with lo w and mass volume in any Batch & Conveyorised system.
Specifications of Electrostatic Powder Coating Gun Machine |
||
No. |
Item |
Specification |
1 |
Power supply |
AC90-260V, 50-60Hz |
2 |
Total power |
40w |
3 |
Output voltage |
DC24v, 0~100kv adjustable |
4 |
Output current |
≤150µA |
5 |
Polarity |
Negative |
6 |
High-voltage module |
Inside |
7 |
Powder output volume |
50~600g/min, adjustable |
8 |
Compressed air |
0.4-0.8MPa |
9 |
Compressed air consumption |
Max. 25NM3/min |
10 |
Weight of spray gun |
500g |
11 |
Protection level |
IP54 |
※sturdy, modular construction for easy maintenance.
※complete flexibilities and minimum breakdown possibilities.
※minimum "faraday cage effect" and "back ionization".
※highest transfer efficiency with finger touch trigger.
※highest "wrap around" effect with even thickness.
※quick clean "stainless steel hopper"
※easy to operate user friendly controls.
※requires minimum training to operate
The guarantee period of machinery is 12 months after shipping. The buyer should follow the operation instruction and maintenance instruction provided by the seller. Within the guarantee time, the buyer should be responsible for quality problem of the equipment except for man-made damage or problem caused by wrong operation. After guarantee period, the seller will provide necessary support on the customer’s demand and charge reasonablely based on material cost.
