Automatic Recycling PP Large Powder Coating Booth High Efficient

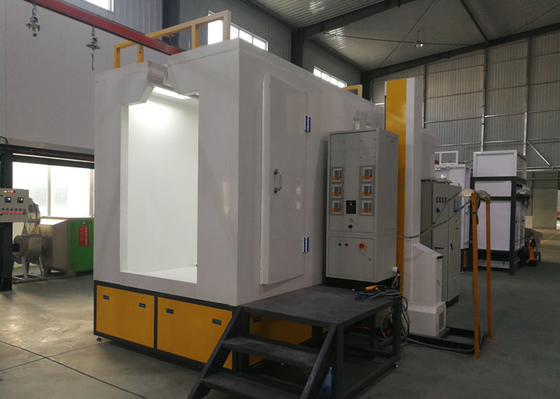

Large Image : Automatic Recycling PP Large Powder Coating Booth High Efficient

Product Details:

Place of Origin:	CHINA
Brand Name:	HM

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	USD 8000-15000
Packaging Details:	Stretch film + air cushion film
Delivery Time:	30days
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets one year

Contact Now

Detailed Product Description

Type:	Powder Coating Booth	Condition:	New
Voltage:	Customized	Dimension:	Customized
Recovery System:	Secondary Recovery System	Automatic Powder Coating Gun::	Customized
Booth Material:	PP Or PVC Board	Substrate:	Steel
Coating:	Powder Coating	Warranty:	One Year
High Light:	Automatic Recycling Large Powder Coating Booth , Large Powder Coating Booth High Efficient , Automatic Recycling powder paint booth

1.Product Description

Product Application

Various range of industrial powder coating booths is based on a modular concept, which enables each booth to be customized to suit any specific requirement. The size of the Manual & Automatic Booth is determined by the size, the speed and the shape of the objects to be coated. The high efficiency cyclone collector recovers as much as 98% plus of the powder exhausted from the booth. It has 2880rpm motor with highly efficient impeller given a rotary motion which creates a centrifugal force on particles. After filter Bag System for Non-Pollution Area.

Device parameters
NO	Items		Specification
1	booth body	size	L6000xW2200xH3150 or customized
		Manual painting opening	customized
		Automatic gun hatch size	200x2100 or customized
		Booth body material	PVC or PP
		Plate thickness	100
		import and export opening dimensions	1000 or customized
2	Base	Base height	600 or customized
2	Base	Base material	Carbon steel
3	Powder of lighting		20Wx6 or customized
4	Wind pipe material		Stainless steel
5	Booth opening wind speed		0.5m/s

Main Features

1.This kind of plastic powder booth is compact with high color-change speed.
2.The booth airflow is designed to assure powder containment, with an open -face canopy design and lart part opening. the open -face canopy maximizes operator access to parts being coated, for unsurpassed flexibility of movement based on parts size and shape; and highest -possible transfer efficiency.
3.Evenly distributed , front to back booth air flow, combined with an engineered plastic canopy material, reduce powder attraction to provide ultra-fast evacuation of any airborne powder color change, this enhance color change speed. eliminates the possibility of cross-contamination of colors, and makes routine booth cleanup a breeze.meet batch, short-run and custom color production requirements.
They are designed for coating of small , similar-shaped parts on full production lines as well as large, irregular4-shaped products on a just-in time basis.
Plastic Powder Coating Booths provided by us are well known for their quality and durability. These Plastic Powder Coating Booths are fabricated by using qualitative raw material. These Plastic Powder Coating Booths are appreciated in the worldwide market. These Plastic Powder Coating Booths are offered at the market leading rates.
