Product Details:
Payment & Shipping Terms:
|
Voltage: | According To Customer Requirements | Size: | According To Workpiece Size |
---|---|---|---|
Heating Temperature: | About 230 Degrees | Transfer Time: | About 5 Minutes |
Heat Source: | Electricity | Warranty Period: | One Year |
Production Period: | 15 Days | Transfer Method: | Vacuum Wood Grain Heat Transfer |
Weight: | 1300kg | Applicable Products: | Metal Security Doors, Metal Fire Doors, Door Frames, Metal Plates, Etc. |
High Light: | Wood Grain Transfer Printing Equipment,Transfer Printing Equipment For Metal Door,Electricity Heat vacuum transfer printing machine |

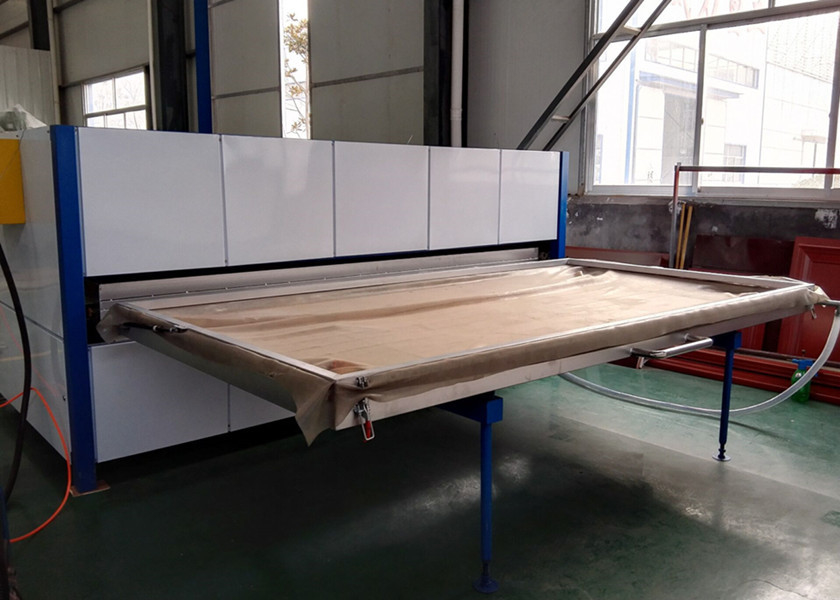

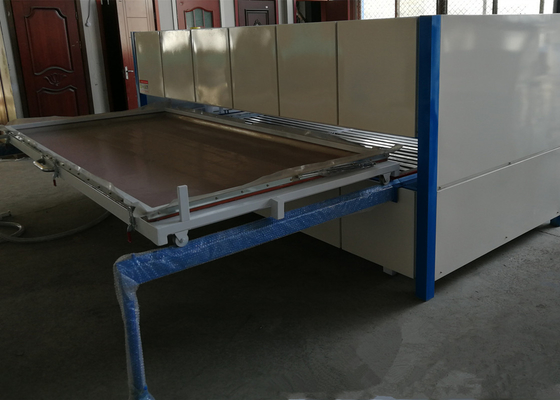

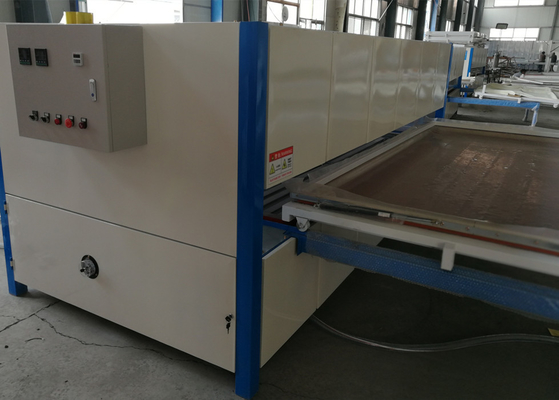

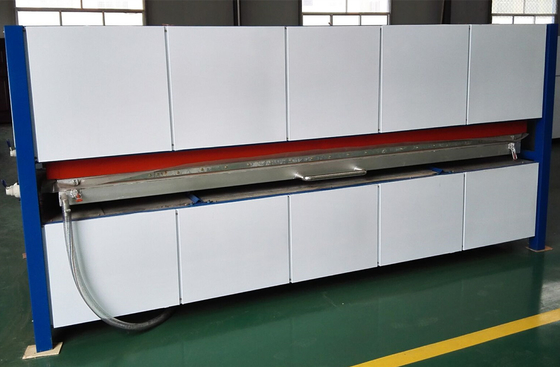

Wood grain heat transfer machine for metal door
Product Application:
This kind of vacuum transfer printing machine (wood effect decoration machine) is high efficiency multi-function decoration machine for whole set steel door, mold steel door,steel door frame, steel sheet and embossed steel sheet , Kitchen cabinet, filing cabinets,aluminum platewhich. It takes 5~8mins to finish whole set steel door wood effect decoration.
Wood effect transfer printing machine for steel door Working principle:
Vacuum transfer printing is a sublimation between the special inks and a powder coated substrate. At the appropriate temperature and pressure, the pigment inks transfer from a paper or a film are absorbed into the powder coating layer. Photographic reproduction of any pattern is possible. This kind of metal surface decoration is popular and widely be applied.
Main Features:
1. Perfect decoration effect: Wood effect decoration is good, clear patterns,strong adhesion,without decoration leakage on deep slot,corner turns
2. Low cost and high efficiency :Compared to original manual transfer printing method,no need glue,this new type transfer printing machine has two working tables (alternative working),1~2 workers enough to finish the whole working process. It takes 5~8 mins to finish wood effect decoration process,open the working table,the transfer paper will drop off automatically,no any additional working process.
3. Durable:
1).The vacuum suction use special fluorine silicone material,good adsorption,heat resistance and long life time
2). Electric control system adopts domestic and foreign well-known brands which is safe and reliable.Ensure the transfer printing machine running safely and effectively,reduce frequency and cost of maintenance.
4. Easy operation: It is very easy to operate this machine
It is widely used in security door,steel door,fire door,aluminum door,large iron gate, single leaf metal door,,molded steel door,, steel door frame,Kitchen cabinet, filing cabinets.
Product configuration
No. | Item | Quantity |
1 | Door leaf transfer bed | 2 |
2 | Door frame transfer work bed | 2 |
3 | Heating pipe | about 27 |
4 | Vacuum pump | 2 |
5 | Vacuum pressure gauge | 1 |
6 | Buffer tank | 1 |
Transfer effect
