Silicon Membrane Wood Grain Machine Sublimation Equipment Energy saving

1.Product Introduction

Silicon membrane table design aluminum door wood grain sublimation machine is popular used for aluminum sheet& aluminum panel&aluminum

door,could transfer wood grain on 20 pieces of aluminum sheet in one time,maximum article width is 1500mm, maximum length is 6000mm.


Silicon membrane not only have vacuum suction effect, but also play a part in protection of sublimation paper or film.


One side of silicon membrane or two sides of silicon membrane depend of article shape, if thin aluminum panel, one side of silicon membrane is

enough, for thick aluminum sheet or thick aluminum cubic shape, may use two sides of silicon membrane.


Before making wood grain sublimation effect, basic color powder coating is necessary, because the wood pattern should be absorbed inside of

powder,no powder no wood grain sublimation effect.


Raw material should be wood effect paper or wood effect film only.

2.Whole line of aluminum sheet wood effect sublimation machine consist of :

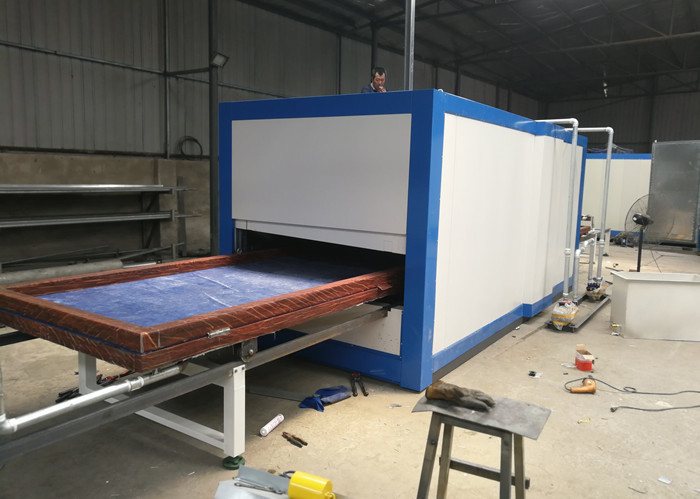

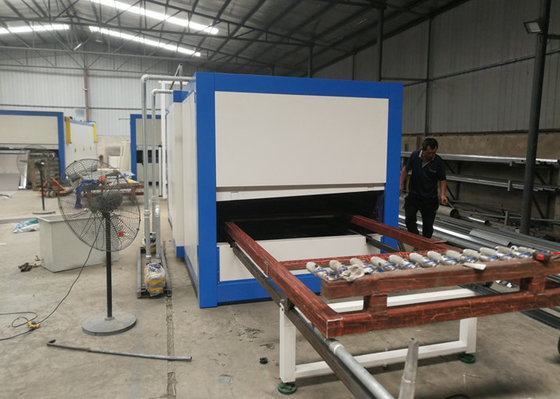

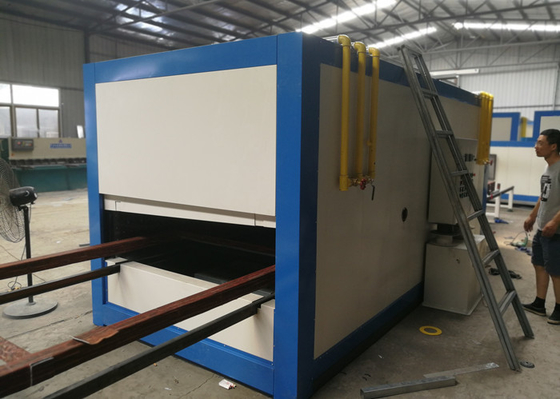

1 set of heating oven with hot air circulation fan;

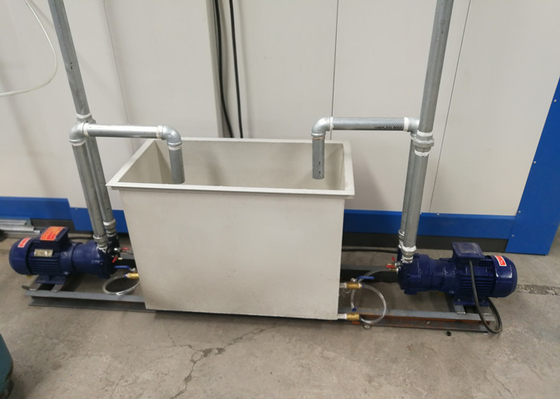

2 sets of silicon membrane table with vacuum making system

1 set of heating system

1 set of electrical control panel.

3.Technical parameters:

3.1.heat printing temperature: 150~200 degree

3.2.heat printing time: 10~25min

3.3.oven size: L8500*W2100*H1900

3.4.overall dimension:L28.5m*W2.3m*H2.5m

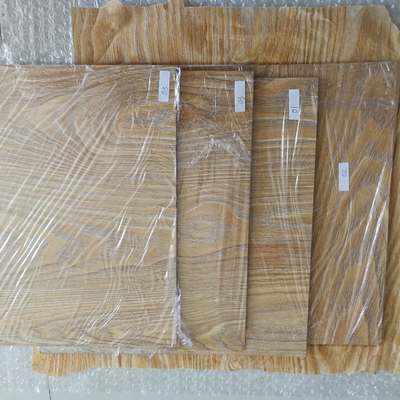

4.Heat transfer effect
