380V Automated Powder Coating Line High Efficiency Aluminium Powder Coating Machine

1.Product Description

We are professional in any kind of powder coating line design,manufacture,installation,test run,training and thoughtful after sale service in home and abroad.
The powder and free conveyor line includes conveying system, powder room and recovery system, powder supply and spray gun system, powder curing furnace system,Control System.
The whole conveying system mainly includes drive motor, carrying trolley, traction chain, traction track, bearing track and tensioning device. Its characteristic is that in the running process, when the whole transmission system does not stop, the carrying trolley can stop in the upper and lower workpiece area, so as to facilitate the workers to load and unload the workpiece.
Under the same conditions, the accumulation and release line has the characteristics of fast running speed, large output and small footprint. Therefore, it is deeply loved by customers at home and abroad.

2.Inspired technology

1).Power & Free Conveyor Design .Power & Free conveyors are twin-rail systems using a power chain to haul the carriers. The power chain is equipped with evenly spaced rigid dogs, which latch onto the movable cam on the trolley to form an interlocking connection.
2).Stops and contact skids allow the carriers to be automatically stopped, closely buffered and automatically released as required.
3).Carrier spacing and moving speeds are variable and can be set independently for each individual chain circuit.
If needed, P & F conveyors can also be equipped with destination controls, which also provide solutions to complicated distribution, sorting and special task problems.

3.Specifications(main equipment list)

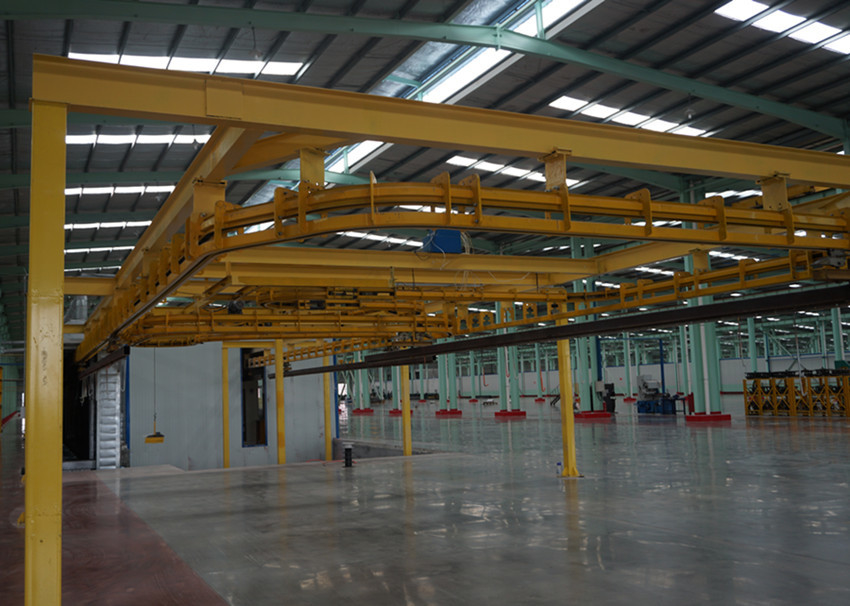

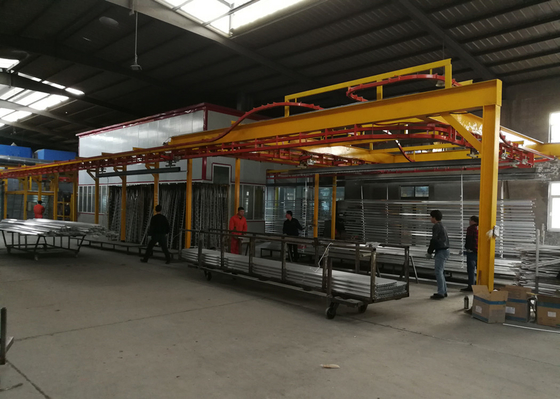

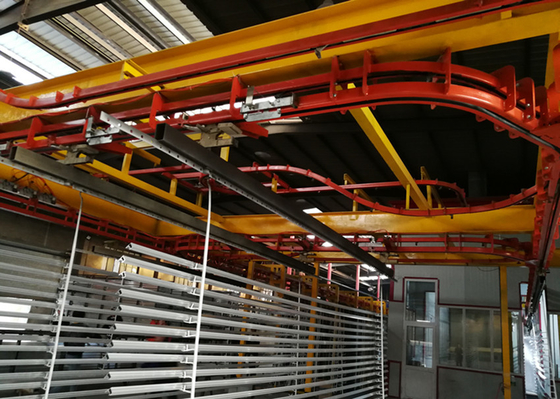

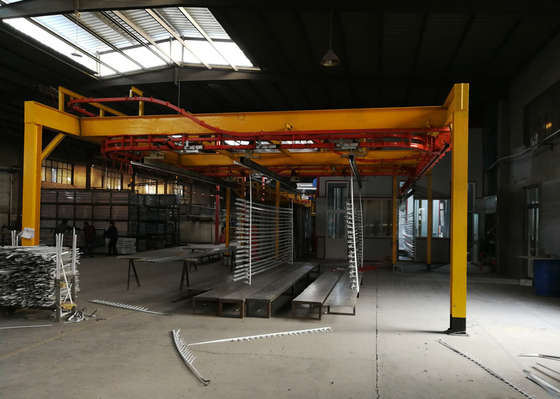

4.Product Pictures









5.FAQ

Q1.What is the advantage about your company?

A1.Our company has professional team and professional production line.

Q2. Why should I choose your products?
A2. Our products are high quality and low price.

Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.

Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
