Compact High Output Automatic Powder Coating Plant System Customized Power

Large Image : Compact High Output Automatic Powder Coating Plant System Customized Power

Product Details:

Place of Origin:	CHINA
Brand Name:	HM

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	USD 80000-200000
Packaging Details:	Stretch film + air cushion film
Delivery Time:	30days
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	20 sets one year

Contact Now

Detailed Product Description

Type:	Power And Free Conveyor Powder Coating Line	Condition:	New
Power:	Customized	Warranty:	One Year
After-sales Service Provided::	Engineers Available To Service Machinery Overseas	Coating:	Powder Coating
Voltage:	Customized	Dimension:	According To Workpiece Size
Weight:	About 10 T	Substrate:	Aluminum
High Light:	High Output Automatic Powder Coating Plant , Compact Automatic Powder Coating Plant , High Output automatic powder coating system

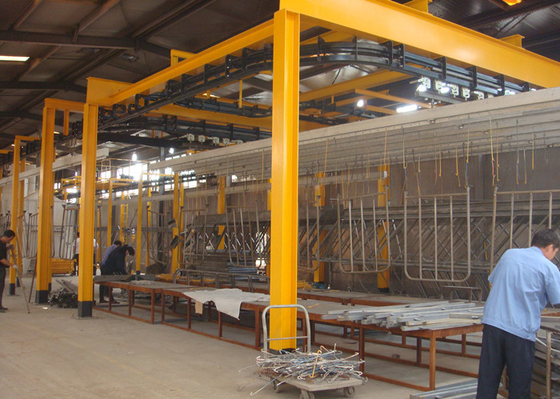

Automatic Power and Free Conveyor Powder Coating Line for Aluminium Profiles

1. Product Description

We are professional in any kind of powder coating plant design,manufacture,installation,test run,training and thoughtful after sale service in home and abroad.
Power and free conveyor is highly automatic and integrative, which can stop individual loads without stopping the entire production line. The main conveyor is moving continuously, but another loading conveyor just move step by step (position: inside the oven, loading & unloading area). The output capacity can be very big if the main conveyor speed is fast, no need to enlarge the oven size. So it takes smaller space than the common tunnel oven design.

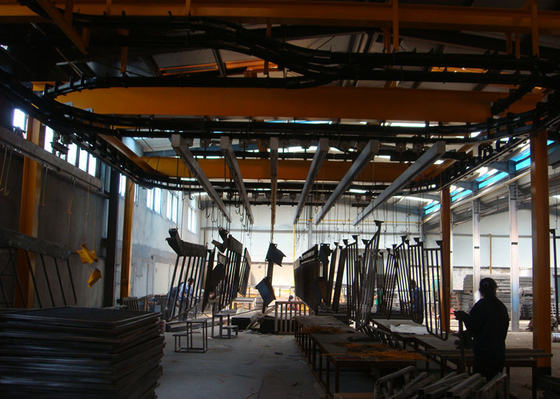

Compact High Output Automatic Powder Coating Plant System Customized Power 0

2. Curing oven description

The furnace consists of sandwich panels which have rock wool and yellow as the insulation material between inner side of 1.2mm galvanized steel and outer side of 1.2mm mild steel sheet. The walls and the ceiling of the oven are 50mm rock wool and 100mm glass wool insulation,total thickness 150mm and its base is 50mm thickness. There are adjustable type air blowing mouths and air circulation ducts which homogeneously distribute air at 200°
Temperature control device is digital type. The temperature of the oven is controlled by the command of the thermostat that works by the signal of the thermocouple ,to the burner.
Adjustable type digital thermostat,thermocouple,cable line to the fans,cable channel and electrical control panel are included in the system.

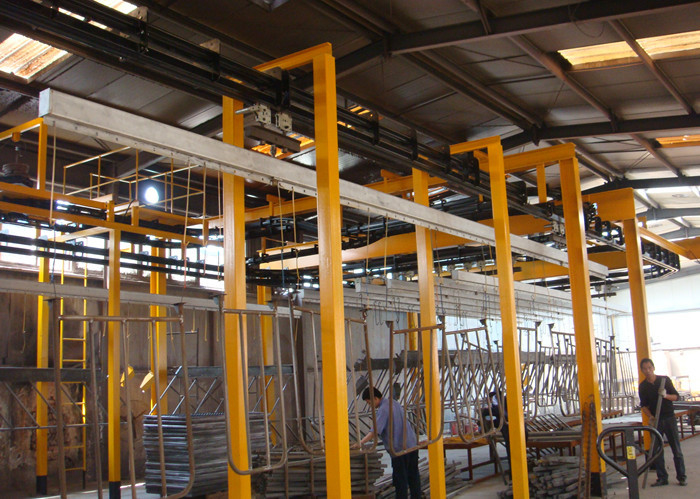

Compact High Output Automatic Powder Coating Plant System Customized Power 1

3. Heating unit

Thermo-unit is fitted at the back side of the furnace and has the capacity of increasing the furnace temperature up to 220°C. This unit includes heat-exchanger,circulating fan,an observation cover,electrical installations and a control panel.

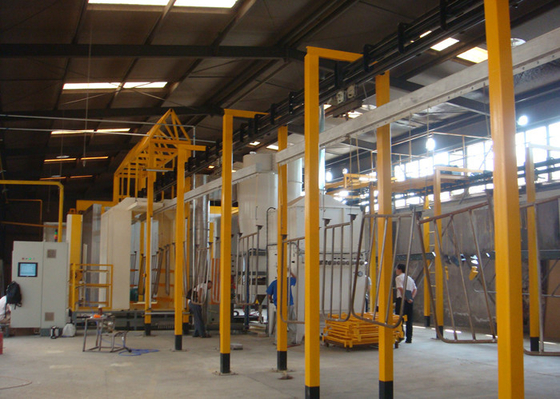

Compact High Output Automatic Powder Coating Plant System Customized Power 2

4. Powder coating booth

The powder booth is suitable for manual and automatic coating applications and is designed so that it will collect the excess of powder in the filter group. The powder which does not stick to the material within the booth is collected in the powder hopper under the booth. Powder hopper has vibration motor and sieve where can be sieved and recovered unused powder.
The complete frame of the booth is manufactured from 1.5mm and 2mm DKP steel sheet and is powder coated inside and outside. There are spaces for inspection filters and the solenoid valves,and space for changing the filters. Radial type powder suction ventilator is fixed above the filter groups. Filter group there are 3 units of cartridge type filters and 3 units of solenoid valves that operate by pressured air. Bellow the filters,the base is inclined and powder spills towards the booth. Since the suction power of the filters will decrease during painting application,the filters are shocked manually and automatic by the opposite air shocking system consist of pneumatic valves.

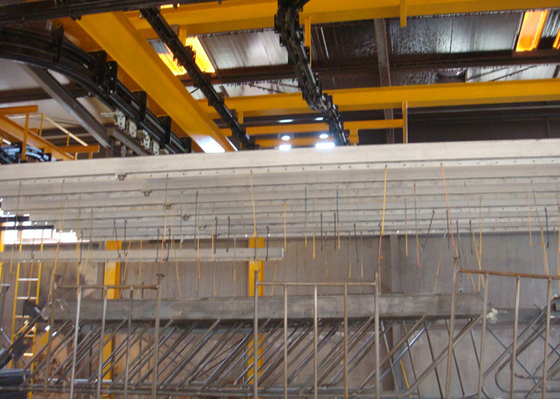

Compact High Output Automatic Powder Coating Plant System Customized Power 3

5. Automatic spraying line of pretreatment

No	Name	Quantity (set)	Remarks
1	Automatic spraying line of pretreatment	1
2	Power and free conveyor	1
3	Powder curing oven	2
4	Heat exchanger for curing	1
5	Powder spraying booth	1
6	Powder recycle system	1
7	Auto spraying gun	8	According to the products
8	Manual spraying gun	2
9	Powder supply center	1
10	Electric control system	4
11	Reciprocator	2

6. Power& Free Conveyor Advantages

6.1. Compact design with buffering mechanisms inside the track.
6.2. Flexible installation with minimum space requirements.
6.3. Allow chain transfer at any time, regardless of dog spacing.
6.4. Fully automatic operation with hierarchical control system with user-friendly visualization interface.
6.5. Control functions can be linked to central plant computer system.
6.6. High availability through modular design, easily exchangeable components, quick repair of breakdowns.
6.7. Transfer-free carrier movement, including at lifting stations.
